CYTC 70 Underground MID-Deep Hole Drilling Machine Low Profile Production Drill

Name: CYTC 70 Underground MIDDeep Hole Drilling Machine Low Profile Production Drill
Brand: Jarlo
Price: 150000 USD

Brand Name : Jarlo

Model Number : CYTC 70

Certification : China National Mining Safety Certificate

Place of Origin : China

MOQ : 1 set

Price : 150000-170000 USD

Payment Terms : LC, T/T

Supply Ability : 1000 Set Per Year

Delivery Time : 45-60days

Packaging Details : Container loaded

Model NO. : CYTC 70

Condition : New

Bit Type : Alloy Steel

Drilling Way : Rotary

Transport Package : in Bulk

Trademark : Jarlo

Origin : China

Customization : Available

After-sales Service : 12 Months

Contact Now

CYTC70 Mining Hydraulic Drilling Rig

1. Applicable Scenarios
The CYTC 70 mining hydraulic drilling rig is a medium-sized fully hydraulic medium-deep hole rock drilling mining equipment, suitable for mining operations in small and medium-sized non-coal mines.

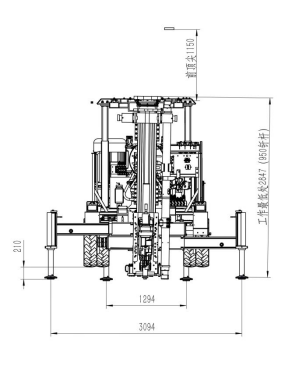

2. Structure and Dimensions
CYTC 70 Underground MID-Deep Hole Drilling Machine Low Profile Production Drill

3. Working scope
CYTC 70 Underground MID-Deep Hole Drilling Machine Low Profile Production Drill

4.Parameters

Model						CYTC70
Item					Unit
Machine performance	Drill boom				Set	1
	Applicable tunnel size(W×H)				mm	(Min. 3500×3000)/(Max. 6000×4500)
	Transportation size		L		mm	8400±200
			W		mm	1600±100
			H		mm	2600±100
	Min. Turning radius				mm	Inner 3000 Outer 5400
	Working state stable vehicle mode					Outriggers
	Ground clearance				mm	≥205
	Total mass				kg	12000±500
	Drill hole diameter				mm	64～89
	Applicable shank adapter				mm	T38,T45
	Rod length				mm	Standard 1000(Other rods with different propulsion beam)
	Drill depth				m	≤35
Drilling system	Model				——	YYG-20
	Type				——	Impact+rotation
	Drill hole diameter				mm	76
	Impact power				kW	20
	Impact frequency				HZ	55
	Hydraulic pressure(Max.)				bar	250
	Rotation motor				——	Independent rotation
	Rotation speed				rpm	0-210/0-140
	Lubrication air consumption(3bar)				L/s	5
	Water consumption				L/min	50
	Weight				kg	171
Propeller	Propulsion mode				——	Cylinder
	Max. Propulsion power				kN	≥15 KN
	Working pressure				MPa	≤7
	Propulsion beam compensation stroke				mm	1200
Driving system	Driving type				——	By tire
	Driving speed			Gear Ⅰ	km/h	6±0.6
				Gear Ⅱ	km/h	11±1.1
	Rear axle swing angle				(°)	±7
	Climbing ability				(°)	≥14°(slope+14°~-14°)
	Transmission type				——	Hydro-static four-wheel drive
	Braking type				——	Closed wet multi-circuit hydraulic brake (driving), spring mechanical brake (parking)
	Diesel engine	Rated power			kW	88
		Rated speed			r/min	2200
Electric motor hydraulic oil pump	Electric motor	Rated power			kW	55
		Rated voltage			V	380
		Rated current			A	102
		Starting current			A	300
	Oil pump	Rated pressure			MPa	21
		Max. working pressure			MPa	23
Auxiliary working device	Air supply device	Working pressure			MPa	0.23
		Rated flow			m3/h	31
	Water supply device	Working pressure			MPa	0.6～1.2

CYTC 70 Underground MID-Deep Hole Drilling Machine Low Profile Production Drill Images
